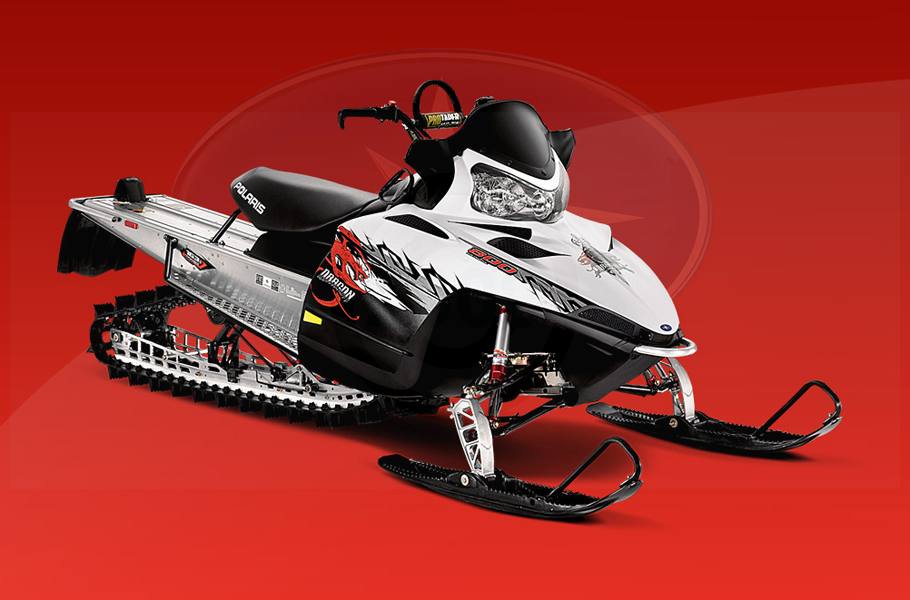

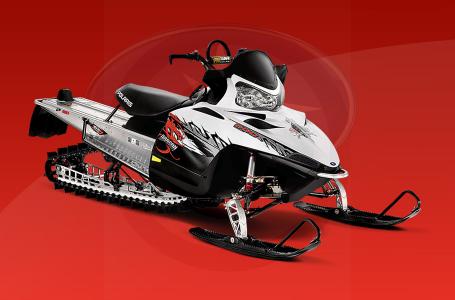

2009 Polaris Industries 800 Dragon RMK 163
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine & Drivetrain
    • Engine Type/Cooling: Liberty / Liquid
    • Cyl-Displacement (cc): 2, 795
    • Bore x Stroke (mm): 85 x 70
    • Horsepower: 154
    • Exhaust: SC VES, Single
    • Carburetion: Cleanfire Injection - 4
    • Disc Brake Type: Phantom, Hydraulic w/ LWT Disc and Cyclone Master Cylinder
    • Drive/Driven Clutch: P-85 / P2
    Dimensions
    • Est. Dry Weight (lbs./kg.): 477 / 216.4
    • Overall Length (in./cm.): 134 / 340.4
    • Overall Width (in./cm.): 46.5 / 118.1
    • Overall Height (in./cm.): 49.5 / 125.7
    • Ski Center Distance(in./cm.): 39 - 40- 41 / 99.1 - 101.6 - 104.1
    • Fuel Capacity (gal./liters): 11.5 / 43.5
    Suspension
    • Front Suspension: IQ RMK Adjustable
    • Front Travel (in./cm.): 9 / 22.9
    • Front Shocks: Walker Evans Air
    • Ski Type: Gripper
    • Rear Suspension: RMK
    • Rear Travel (in./cm.): 16.5 / 41.9
    • Front Track Shock: Walker Evans Air
    • Rear Track Shock: Walker Evans
    • Track (W x L x H in.): 15 x 155 x 2.4 Series 5.1
    Features
    • Steering: Pro Taper
    • Seat Type: Freestyle
    • Gauge Type: Digital MFD
    • Windshield: 12 inch, Matte Black
    • Electric Start: Option / Accessory
    • Reverse: PERC
    • 12v-DC Outlet: Accessory
    • Hand & Thumb Warmers: Std. Adjustable
    • Mirrors: Accessory
    • Rear Rack / Tow Hitch: Accessory
    • Color / Graphics: Matte White / Dragon

    Specifications

    Engine
    Engine Type Liberty
    Displacement 795 cc
    Bore x Stroke 85 x 70 mm
    Cylinders 2
    Engine Cooling Liquid
    Carburetion Cleanfire Injection - 4
    Ignition Digital CDI w/TPS, WTS, DET
    Exhaust SC VES, Single
    Drivetrain
    Brake Type Phantom, Hydraulic w/ LWT Disc and Cyclone Master Cylinder
    Drive Clutch P2
    Driven Clutch P-85
    Suspension
    Front Suspension Front Suspension: IQ RMK Adjustable; Front Shock: Walker Evans Air
    Front Travel 9 in. (22.9 cm)
    Rear Suspension RMK
    Rear Travel 16.5 in. (41.9 cm)
    Ski Type Gripper
    Ski Stance 39 in. - 40 in. - 41 in. (99.1 cm - 101.6 cm - 104.1 cm)
    Track Type Series 5.1
    Track Dimensions 15" x 155" x 2.4"
    General
    Speedometer Digital MFD
    Tachometer Digital MFD
    Fuel Capacity 11.5 gal. (43.5 l)
    Dry Weight 477 lbs. (216.4 kg)
    Windshield 12 in. Matte Black
    Color Matte White / Dragon
    Warranty One Year Factory Warranty
    Options
    Electric Start Option / Accessory
    Hand & Thumb Warmers Std. Adjustable
    Reverse PERC
    Mirrors Accessory

    Compare Models

    		 Print








    Year 2009
    Manufacturer Polaris Industries
    Model 800 Dragon RMK 163
    Style Mountain
    MSRP* $11,199.00
    Drivetrain
    Brake Type Phantom, Hydraulic w/ LWT Disc and Cyclone Master Cylinder
    Drive Clutch P2
    Driven Clutch P-85
    Engine
    Engine Type Liberty
    Displacement 795 cc
    Bore x Stroke 85 x 70 mm
    Cylinders 2
    Engine Cooling Liquid
    Carburetion Cleanfire Injection - 4
    Ignition Digital CDI w/TPS, WTS, DET
    Exhaust SC VES, Single
    Alternator
    General
    Speedometer Digital MFD
    Tachometer Digital MFD
    Odometer
    Headlight
    Fuel Capacity 11.5 gal. (43.5 l)
    Dry Weight 477 lbs. (216.4 kg)
    Windshield 12 in. Matte Black
    Color Matte White / Dragon
    Warranty One Year Factory Warranty
    Options
    Electric Start Option / Accessory
    Hand & Thumb Warmers Std. Adjustable
    Reverse PERC
    Mirrors Accessory
    Suspension
    Front Suspension Front Suspension: IQ RMK Adjustable; Front Shock: Walker Evans Air
    Front Travel 9 in. (22.9 cm)
    Rear Suspension RMK
    Rear Travel 16.5 in. (41.9 cm)
    Ski Type Gripper
    Ski Stance 39 in. - 40 in. - 41 in. (99.1 cm - 101.6 cm - 104.1 cm)
    Track Type Series 5.1
    Track Dimensions 15" x 155" x 2.4"
